Starter Solenoid Repair

As always, this article was written entirely without the use of AI. All images and videos are my own, and the information presented is based on my own first-hand experiences unless otherwise stated.

Ever since I bought the truck back in February 2025, it’s had an intermittent starting issue. Occasionally when you turned the key, it would emit a single audible click from the starter solenoid, before eventually starting after numerous turns of the key. I knew exactly what the issue was; starter motor solenoid issues are relatively common on 1KZ-TE powered Hilux Surfs. I put it off for many months, through sheer laziness. Eventually it got progressively worse, culminating in a long walk home from the barn one evening when it failed to start altogether. I realised the time had come to replace the contacts.

Why does this happen?

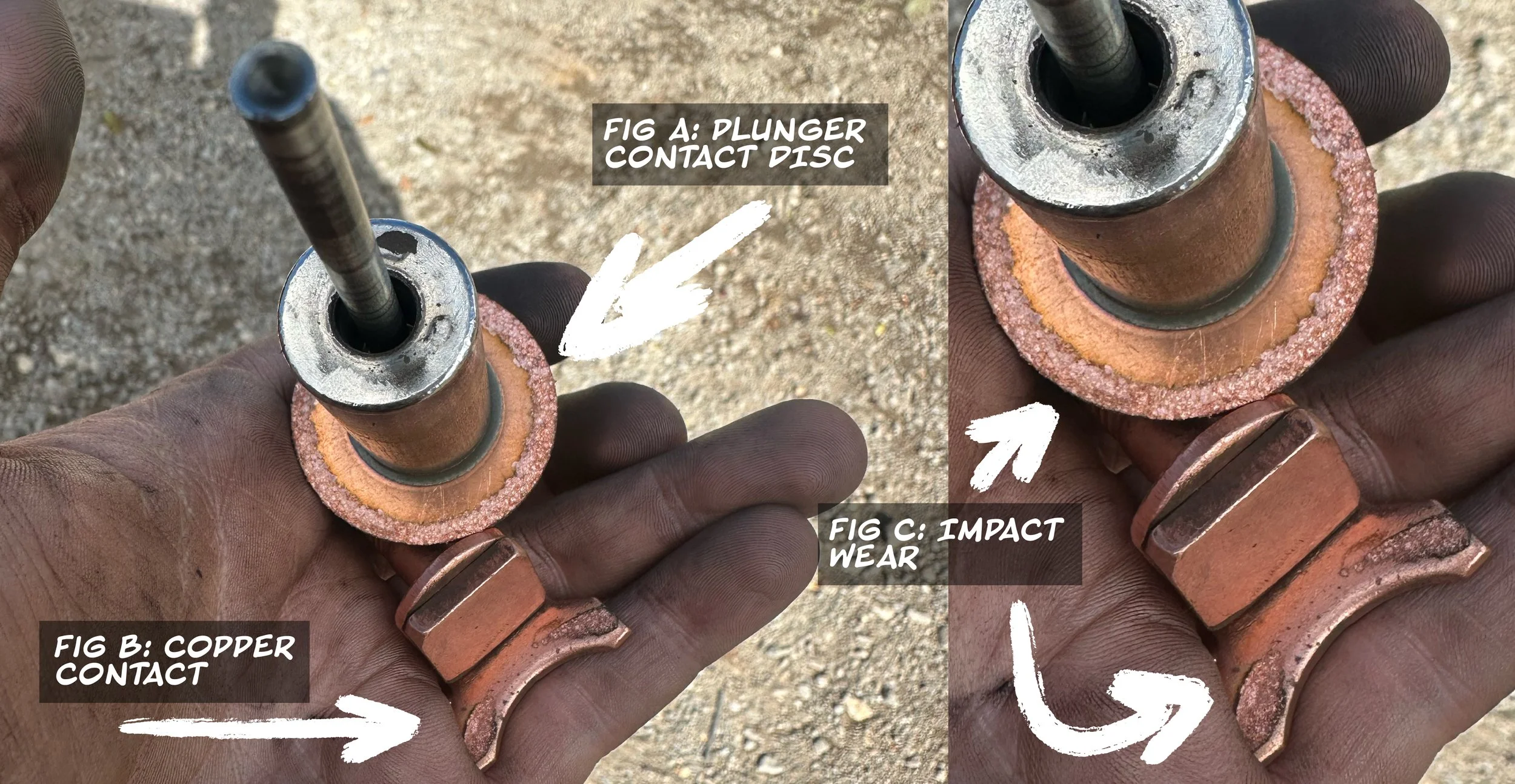

In simple terms; inside the starter solenoid is a plunger, with a copper ring attached to it. When you turn the key, this plunger moves downward and makes contact with two L-shaped copper contacts, which completes the circuit and provides the necessary power required to activate the starter motor. Over time, these copper contacts deteriorate as a result of repeated contact. The clicking sound you hear is the plunger moving, but failing to make adequate contact with the contacts.

What’s the fix?

As mentioned before, this is a fairly common issue on 1KZ-TE starter motors. Rebuild kits are readily available and relatively inexpensive. I bought a Genuine Toyota Starter Solenoid Rebuild Kit off eBay for £55. If your Hilux Surf has covered a fair few miles, as mine has, there’s a strong chance your starter will have been replaced at some point with a non-OE unit. There are a variety of manufacturers of starter motor, but all operate in the same manner. If it’s convenient to do so, remove the starter and inspect the contacts to ensure you’re ordering a compatible kit. Alternatively, if you’re unsure, speak to your chosen supplier and quote any serial numbers present on the unit. That said, I didn’t, and whilst some of the components included with my rebuild kit were slightly different from those present on my starter solenoid, the plungers themselves are fairly universal across all kits/starter motor units, and the contact area was still more than adequate. You can reuse the existing plastic elements if required.

How to remove the starter motor?

Jack the vehicle up and remove the passenger-side wheel (RHD vehicles). There’s a plastic inspection cover inside the wheel arch, secured with plastic connectors. Remove the cover, and the starter motor will be visible behind. There are two electrical connections that you need to remove,
